I. Product Introduction

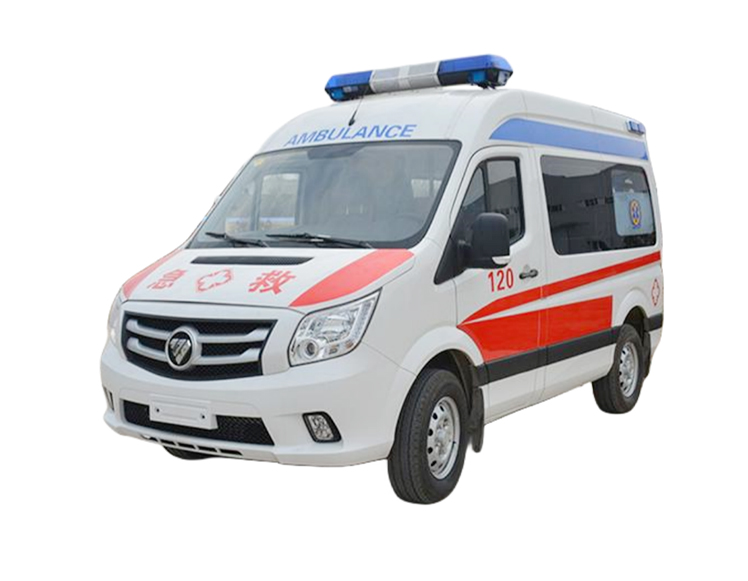

The Tuyano long-axle mid-roof monitoring ambulance is modified from the Tuyano long-axle model launched by Foton Motor. It is equipped with a Cummins 2.8T diesel engine and a comprehensive active and passive safety protection system, with a speed of up to 150km/h. By using ABS+EBD technology, it can actively detect and analyze road conditions and reasonably adjust the driving direction. It adopts the leading domestic high-strength steel plates, with high-strength anti-collision steel beams installed at the front and back. The H-shaped high-steel frame is equipped with an anti-collision energy absorption design to ensure collision safety. The overall vehicle body has a low center of gravity and is more stable, effectively ensuring the safety of the driver. The medical cabin is spacious and well-designed. The entire vehicle adopts the leading domestic medical vehicle modification technology, suitable for all kinds of hospitals and emergency centers, especially for patient transfer and emergency treatment within the city.
Ii. Vehicle Parameters and Standard Configurations
Modified base model vehicle (chassis vehicle) : Foton Tuyano long-axle mid-roof diesel National VI manual transmission
Appearance color: White/red
Maximum gross mass: 3,800 kg
Passenger capacity: 7 people (including the number of stretchers)
Wheelbase: 3350mm
Vehicle body dimensions: 5495mm×2000mm×2615mm
The dimensions of the medical cabin are: length × width × height 2960mm×1800mm×1650mm
Approach/departure Angle: 21.5º/22º
Maximum speed: 150km/h
Engine model: F2.8NS6B177L
Engine displacement: 2.780L
Emission standard: National VI
Rated power: 130KW
Fuel tank capacity: 80 liters
Drive type: Front-engine, rear-wheel drive
Minimum ground clearance: 160mm
Transmission: 6 forward gears and 1 reverse gear
Suspension type: MacPherson independent suspension/leaf spring non-independent suspension
Power steering types: rack and pinion type, hydraulic power steering
Braking type: front disc, rear disc, hydraulic braking
Iii. Medical Warning Appearance
Body structure: It adopts a steel reinforced frame structure design, which is safe and reliable.
The right side of the vehicle body is equipped with a sliding door, and the rear end adopts a double-opening tailgate structure with a large opening width, which is convenient for medical staff, patients and stretchers to get on and off.

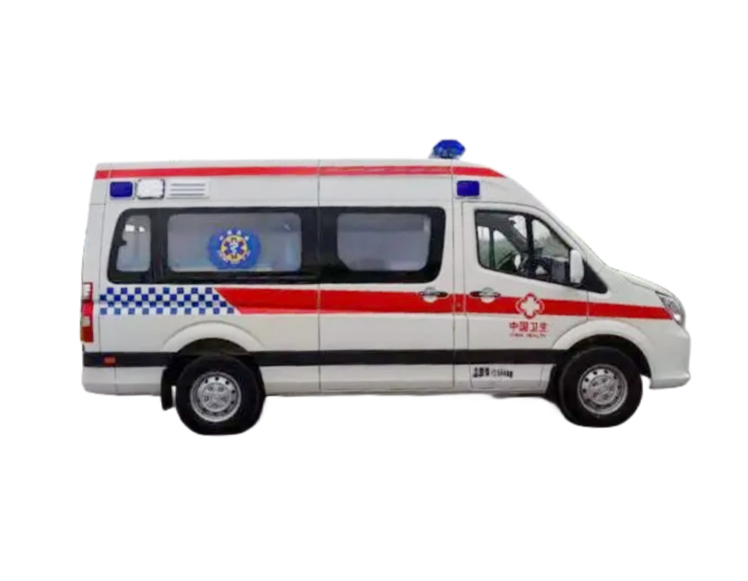

Vehicle appearance: The entire body is white. Red Cross logos are pasted on the front of the vehicle, both sides of the body and the rear door. Colorful stripes are pasted around the vehicle, which are bright and eye-catching, effectively serving as a warning.
The medical cabin glass is covered with two-thirds frosted cellophane, effectively protecting the patient's privacy.
Warning lighting fixtures: Top-mounted I-shaped LED police light assembly, alarm horn power 100W, line-controlled controller, equipped with an LED light group inside. Blue flashing lights are installed on both sides and at the rear to effectively warn.
Iv. Medical Cabin rescue Facilities
Rescue system: Automatic stretcher: The stretcher is made of high-strength aluminum alloy, with a PVC waterproof sponge mattress and adjustable backrest. The thickened oval leg tubes, the evenly distributed auxiliary upper wheels around and the aluminum blocks greatly increase the load-bearing capacity of the derrick. Only one person is needed to easily complete the loading process.
Stretcher platform: Made of high-quality aluminum alloy material, it assists stretchers in getting on and off the vehicle.
Infusion stand: Install one set of aluminum alloy rail-mounted infusion stand with two folding hooks on the top of the medical cabin.
Medical oxygen control system: Two 10L steel oxygen cylinders with a nominal pressure of 15MPA (lightweight and easy to install, remove and replace), equipped with two single-gauge pressure reducing valves, two German-style oxygen terminals, one ventilator interface and one wall-mounted oxygen inhaler. When the patient is inhaling oxygen, the amount of oxygen can be controlled and a humidification bottle is provided to offer moist oxygen to the patient, which is more conducive to the patient's oxygen inhalation.
V. Medical Electrical Systems
Lighting fixtures: 4 12V cabin lighting fixtures with stable light source and large illumination area, 2 infusion spotlights.
Inverter: Vehicle-mounted sine wave 1000W, stable frequency, stable voltage and stable output power, providing power supply for on-board equipment. Two sets of 220V/12V multi-functional sockets (can be connected to two/three holes, AC/DC dual use).
Disinfection lamp: 1 intelligent timed ultraviolet disinfection lamp to ensure the hygiene and safety inside the cabin.
Vi. Air Circulation System
Air conditioning/heating: 1 set of rear air conditioning and rear heating device, with independent control of cooling and heating, to reasonably adjust the temperature inside the cabin as needed.
Exhaust fan: Installing one set of DC12V multi-functional exhaust fan with suction and exhaust functions on the roof of the vehicle can effectively ensure the efficient circulation of air inside the medical cabin.
Vii. Medical Cabin Cabinet/Interior Configuration
The middle partition wall assembly: A set of new environmentally friendly material-made middle partition wall is installed between the cab and the medical cabin. A glass observation window is set on the middle partition wall to facilitate observation and communication between the front and rear cabins.
Cabinet assembly: Install 1 set of long equipment cabinets made of new environmentally friendly materials. The cabinet body is equipped with storage Spaces such as drawers and open cabinets.
Installation: 1 set of oxygen cylinder cabinet made of new environmentally friendly materials, which can accommodate 2 10L oxygen cylinders inside the cabinet. Install 1 set of wall cabinet made of new environmentally friendly materials. The wall cabinet adopts a sliding door structure, which is convenient for opening the cabinet door.
Installation: 1 set of long base cabinet, including seat cushion, backrest and two-point safety belt.
Medical cabin interior: Made of new lightweight materials, it is waterproof, mold-proof, antibacterial and easy to clean.
Medical cabin floor: Made of medical floor leather material, it is anti-slip, waterproof, anti-mold, antibacterial and easy to clean.
Viii. Auxiliary Equipment
Side sliding door sliding window: Flat sliding glass window.
Walkie-talkies: Install one hands-free microphone each in the cockpit and the medical cabin to facilitate communication and interaction between the personnel in the front and rear cabins.
Fire extinguishers: The medical cabin is equipped with one set of 1kg dry powder fire extinguishers.
Waste bucket: The medical cabin is equipped with one pedal waste bucket with a lid.
Safety handrail: Install one long and narrow handrail on the top of the medical cabin.
Emergency hammer: Install 1 emergency hammer in the medical cabin.
Ix. Optional Configurations
Negative pressure purification device: When one set of negative pressure device is activated, the relative pressure inside the chamber is between -30Pa and -10Pa.
Driving assistance system: including large screen navigation, driving recorder, reversing camera.
Shovel-type stretcher: 1 set (stretcher compartment optional).
Staircase stretcher: 1 set, load-bearing capacity: 160kg.
Side door step: Assists the side sliding door in getting on the vehicle.
Tailgate step: Assists in getting on the tailgate.
