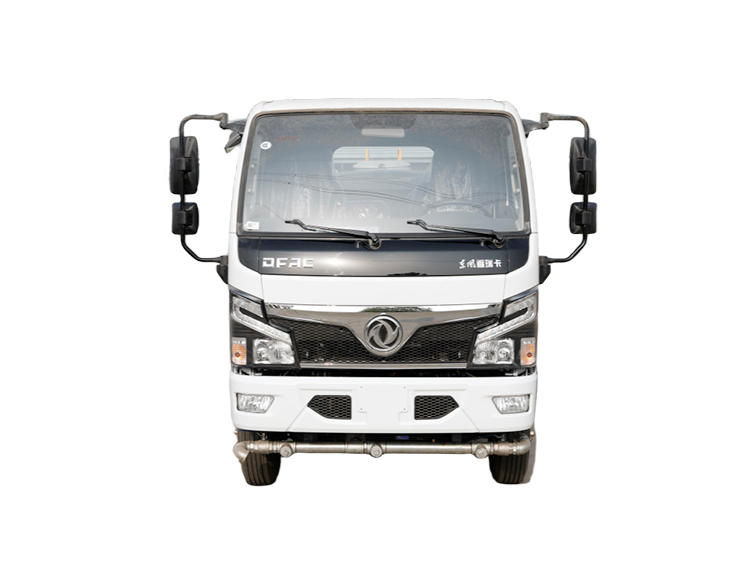

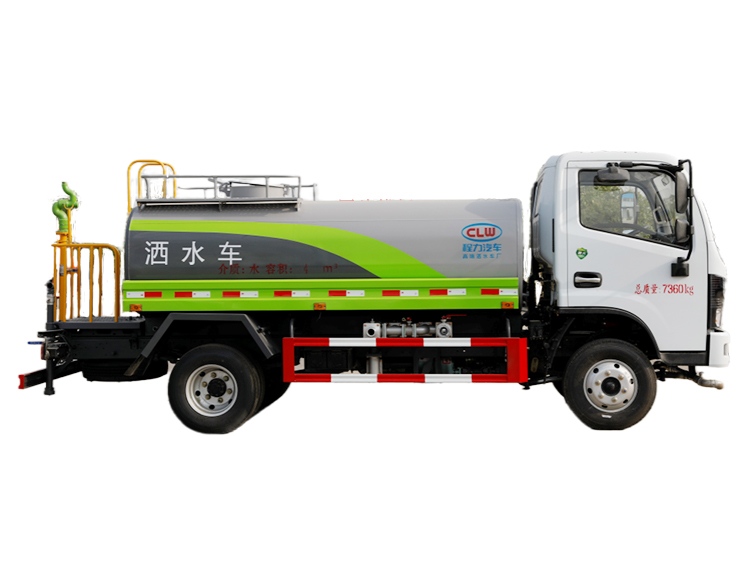

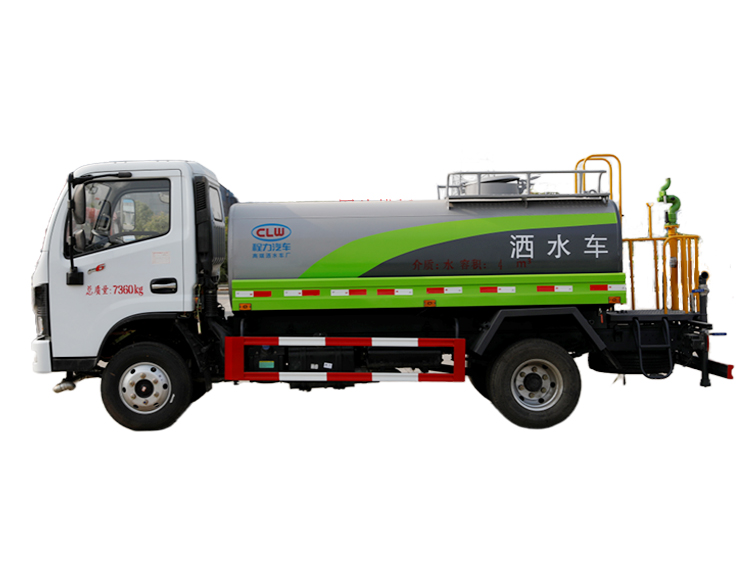

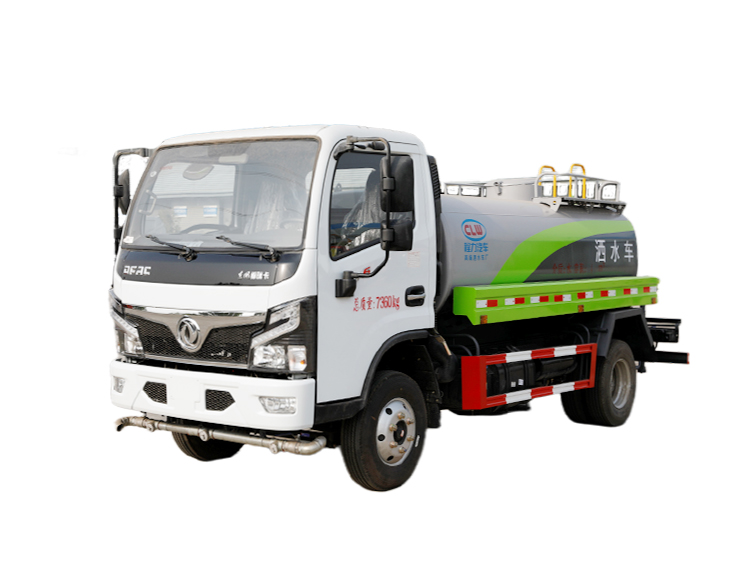

I. Vehicle Name: CL5070GPSD6 Type Greenery Spraying Vehicle
Chassis model: EQ1075SJ3CDF
2. Total mass: 7,360 kg
3. Curb weight: 3690kg
4. Rated load capacity: 3,540 kg
5. Wheelbase: 3308mm
6. Volume: The announced volume is 3.83 cubic meters, and the actual volume is 4.64 cubic meters
7. Tank dimensions: 3100×1600×1100mm
8. Vehicle length, width and height: 7760×2520×3250mm
Ii. Chassis Configuration
1. Yunnei 126-horsepower engine, Wanliyang five-speed transmission, 7.00R16 steel wire tires, 1730, single-row cab.
2. Xichai 130-horsepower engine, Wanliyang five-speed transmission, 7.00R16 steel wire tires, electric Windows and doors, central locking.
3. Quanchai 115-horsepower engine, Wanliyang five-speed transmission, 7.00R16 steel wire tires, electric Windows and doors, central locking.
4. Yuchai 140-horsepower engine, Wanliyang six-speed transmission, 7.00R16 steel wire tires, 1730, single-row cab.
Iii. Specialized Performance
Front flushing (spraying) and rear sprinkling, with side spraying, with a rear working platform, and a high-pressure water cannon for greenery sprinkling installed on the platform (the shape of the cannon spray can be adjusted: direct flushing, heavy rain, medium rain, drizzle, and can be continuously adjusted, with a maximum range of up to 30 meters), equipped with a high-power dedicated water pump, with a fire connector, a self-flow valve, self-priming function, and a filter screen. Suction lift ≥6 meters, water spraying width ≥16 meters, range ≥30 meters.
Iv. Upper tank body and accessories
1. Material: The tank body is made of Q235, with a partition thickness of 3mm, a tank body carbon steel thickness of 4mm, and a head thickness of 5mm. Large-diameter straight-through ball valve, aluminum alloy three-way, thickened main pipe (76) cast aluminum pipe fittings: Aluminum alloy elbow tees, aluminum alloy flange tees, aluminum alloy pump outlet four-way connectors, and aluminum alloy pump inlet straight-through connectors are all formed by one-time die-casting with molds, without welds, preventing water leakage. They feature standardized design, good interchangeability, and are convenient for maintenance and parts replacement. The aluminum alloy material is more lightweight, aesthetically pleasing and practical, enhancing the product's grade. Other accessories: aluminum alloy rear spray, stainless steel ball valve, S-shaped new high-pressure water cannon perforated plate platform: Thickened perforated plate, better anti-slip performance, no water accumulation on the platform, optimized structure, punched.
2. Air-cooled sprayer: 8KW air-cooled diesel generator set.
3. Fan power: 2.2KW.
4. Water pump power: 1.5KW.
5. Working pressure: 1.0-3.5MPA.
6. Spray flow rate: 20L/min.
7. Pitch Angle: -5 to 60 degrees (remote control).
8. Fog spectrum range: 50-150 μ m.
9. Horizontal range (still wind state) : 30M, 16 stainless steel nozzles, 360-degree rotation (manual or remote control).
10. Fan base dimensions (reference) : 1050*550*1700mm
11. Generator dimensions (reference) : 800*600*650mm. The actual dimensions are subject to the physical item. (The fog cannon is an optional device
V. User Notice on Daily Maintenance and Regular Usage Methods of Water Sprinkler Trucks
When the weather is bad (in winter when not in operation), when the vehicle is not working continuously or not in use, all the water release ball valves of the pipeline and the water pump must be opened to drain clean water. If possible, the vehicle should be parked in a sheltered warm room.
2. Weather conditions (during winter operations) : In advance, fill the vehicle tank with an appropriate amount of hot water of a certain temperature until the water outlet ball valve of the water pump is closed and all ball valves of the pipeline are closed respectively when water is discharged. When the tank is filled with fire hydrant tap water and the distance from the operation area is relatively far, the working ball valve should be slightly opened to ensure that there is a dripping water line.
3. Within 2 to 3 days of the first operation of the commercial vehicle, the vehicle user must check and tighten the status of the saddle screws of the frame, the connection screws of the pipe flange plate and the frame connection plate (the tightening status should be checked at any time). When the vehicle's operation attendance rate is high, the gear oil in the vehicle's transmission should be replaced every two months, the drive shaft of the water pump should be greased once, and the lubricating oil condition of the water pump should be re-inspected or replaced every three months. The vehicle users must regularly or at any time inspect and tighten the flange screws and gate valve screws at all parts of the main pipeline.
Vi. Correct Usage Methods of Commercial Vehicles
1. For regular water spraying, start the vehicle and park safely. Open the front spray or rear spray ball valve (only one function can be selected) Close the straight-through ball valve (with the handle perpendicular to the tank), open the gap of the four-way three-way ball valve to a position perpendicular to the tank, step on the clutch pedal, shift into first gear, and simultaneously turn on the power take-off switch and the music horn. Release the parking handbrake and slowly release the clutch pedal to complete the water spraying function. Do not keep the engine speed above 1800-2000 RPM for a long time. Also, when the engine water temperature is too high, lower the throttle to reduce the working time or pull over to the side of the road to check the condition of the engine coolant and the tightness of the generator drive belt. When the water spraying operation is completed or stopped, step on the clutch pedal, turn off the power take-off switch and the music horn, shift the gear to neutral, activate the vehicle's safety parking brake, turn off the engine and stop the machine.
2. Conventional water pumping Start the vehicle and apply the safety parking brake. Pour a certain amount of drinking water into the tank. Connect the vehicle's suction pipe to the four-way three-way ball valve interface properly and submerge the other end of the suction pipe within 40 centimeters of the water. At the same time, open the gap of the four-way three-way ball valve to a position parallel to the tank (in the direction of the driver's cabin). Open the straight-through ball [the handle is in a position parallel to the tank (in the direction of the rear platform)]. Step on the clutch pedal of the vehicle, turn on the power take-off switch and slowly release the clutch pedal. Observe the water suction state of the water suction pipe through the right side rearview mirror (passenger side position), and gradually increase the engine speed until water is sucked. Then release the accelerator pedal until the engine is pumping water at a high speed. After the water pumping operation is completed, step on the clutch pedal and turn off the power take-off switch.
When the regular water spraying and pumping effect is not good, please check whether the three-way filter screen of the water pump is clogged or damaged, and clean or replace it.
4. Maintenance method: A 14-fork wrench can be used to loosen the four screws of the filter screen bottom cover.
