I. Product Introduction

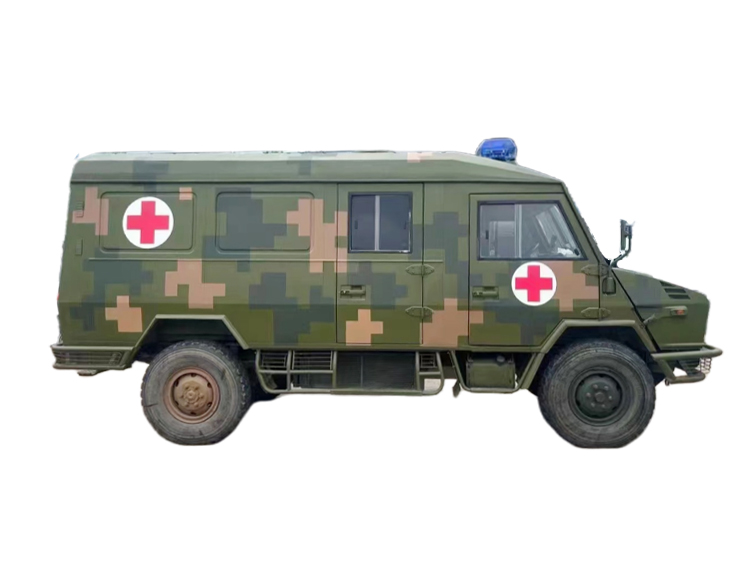

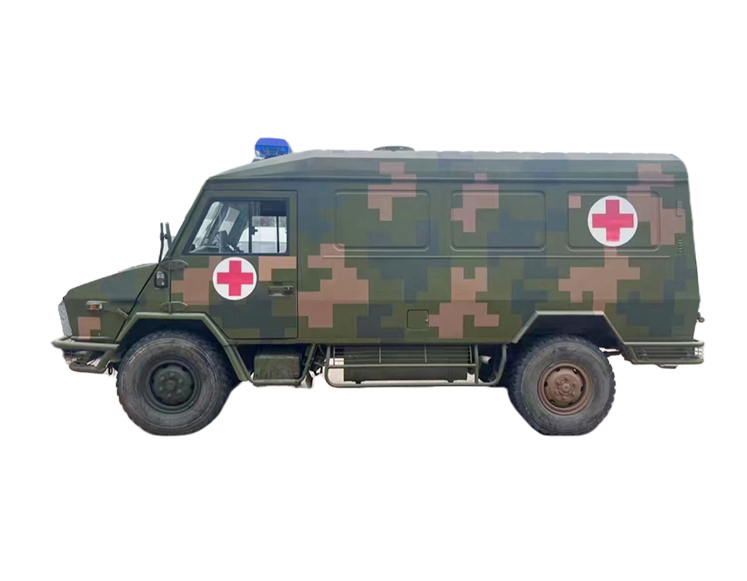

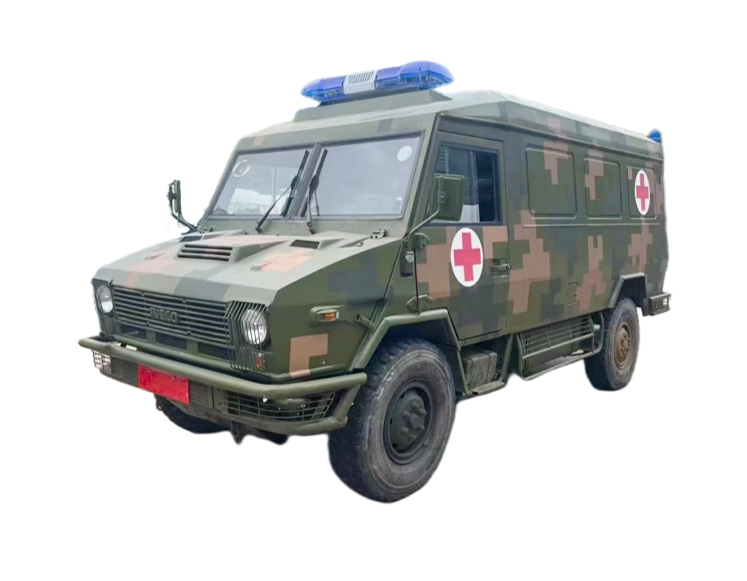

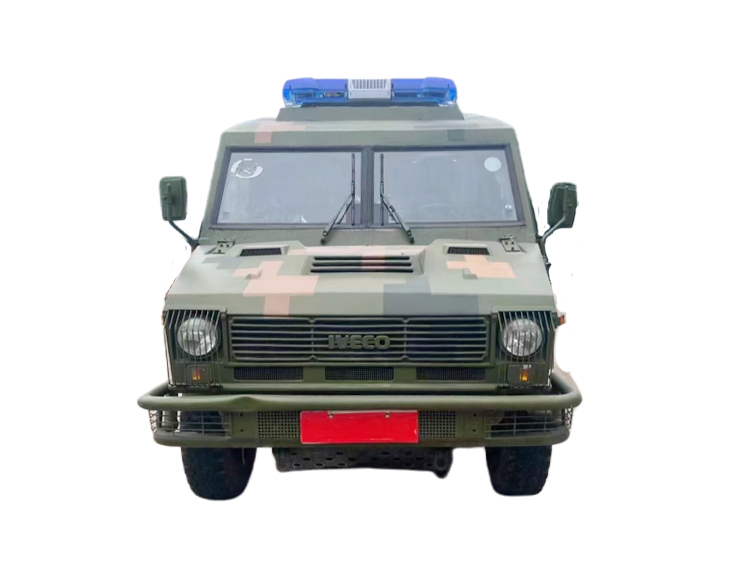

This mobile cabin ambulance is a professional design based on the "Iveco NJ2046GFC Four-Wheel Drive Off-road" chassis. It is equipped with functional equipment such as stretchers, infusion, nursing, oxygen supply, power supply, ventilation, lighting and warning. It is also configured with vehicle-mounted cabinet systems such as medical operation tables, medicinal equipment cabinets, oxygen cylinder cabinets and wall cabinets. This ambulance cabin has a spacious interior, a reasonable layout and a compact structure. The interior adopts a three-dimensional layout mainly with left-right layout and supplemented by top-bottom layout. It is simple and convenient to operate, and the electrical control is scientifically and reasonably integrated. This off-road ambulance is tall and powerful, with good shock absorption effect, capable of crossing water ditches, and has an extremely strong off-road passing ability.

Ii. Vehicle Parameters and Standard Configurations

1. Modified base vehicle (chassis vehicle) : Iveco four-wheel drive.

2. Appearance color: White/red.

3. Form: Vehicle model NJ2046GFC(chassis model).

4. Drive type: 4×4 (part-time four-wheel drive).

5. Body type: Short nose, hardtop.

6. Number of seats: 1+1/2.

7. Dimensions: mm 5916×2100×2700.

8. Wheelbase: 3310mm.

9. Front overhang and rear overhang: 993/1597mm.

10. Front track, rear track: 1670/1670mm.

11. Approach Angle, departure Angle: 37/17(º).

12. Total mass: 3855kg.

13. Curb weight: 3400kg.

14. Front and rear axle loads: 1655/2200kg.

15. Rated power: 95/2798 KW.

16. Maximum torque: 300/1600-2800N•m/r/min.

17. Maximum speed: 90km/h.

18. Minimum stable speed: 2.5km/h.

19. Maximum climbing gradient: 50%.

20. Minimum ground clearance: ≥260mm.

21. Minimum turning diameter: ≤15m.

22. Longitudinal passage Angle :≥29.

23. Trench crossing width :≥650.

24. Vertical obstacle height: ≥280.

25. Wading depth: ≥750.

26. Engine: SOFIM8140.43S6 inline four-cylinder, water-cooled, direct injection turbocharged.

27. Transmission: 2826, five-speed gearbox.

28. Transfer case: Borg - Warner4706 chain drive type.

29. Tires: 255, 85R16LT 10PR.

Iii. Medical warning Appearance

1. Vehicle appearance: The body is white, with body color strips and rescue signs pasted on it, and the colors are bright and eye-catching. The Windows of the mobile cabin are covered with dark solar films (black film on the left side window and frosted glass films on the right rear side Windows 2 and 3).

2. Alarm system assembly 1 set: long row of warning lights (100W speaker) at the front of the vehicle, handheld alarm.

3. One set of LED sign lights (flashing) : 8 LED (blue) and 2 LED (white) lights, totaling 10 lights.

4. One rear field light and one side door exterior light.

Iv. Mobile cabin Rescue Facilities

1. Automatic loading stretcher: The frame is made of high-quality aluminum alloy material, featuring lightness, firmness and easy operation. Through operation, the stretcher carrying the patient can be quickly and smoothly pushed into or pulled out of the ambulance. The backrest is supported by an adjustable structure and can be adjusted. It is equipped with a patient binding safety belt to facilitate the fixation between the patient and the stretcher.

2. Stretcher baffle and gasket: Made of high-quality stainless steel, they assist in getting the stretcher on and off the vehicle.

3. Infusion bottle holders: Install two foldable infusion bottle holders (slide rail type) on the top of the mobile cabin.

4. Oxygen Supply System: Dedicated vehicle-mounted oxygen supply system assembly, equipped with 2 10L steel oxygen cylinders, concealed oxygen pipelines, 2 oxygen-containing terminals, oxygen inhalers and pressure regulating valves.

V. Medical Power Supply System

1. 1000W sine wave inverter.

2. Power control: One set of boat-shaped piano-style control panel.

3. Four 220V sockets.

4. One battery for the mobile cabin.

5. Cabin lighting: One set of recessed lighting fixtures (four LED lights) and two recessed infusion spotlights are installed on the inner ceiling.

6. Intercom system: Intercom systems are installed between the mobile cabin and the driver's cabin.

Vi. Disinfection System

1. Ultraviolet disinfection lamp: Install one ultraviolet disinfection lamp on the upper part of the middle partition.

2. Air conditioning and heating systems for the mobile cabin.

One set of independently controllable rear air conditioning and rear heating system, with independent control of cooling and heating, to reasonably regulate the temperature inside the mobile cabin.

Vii. Interior Configuration of the Cabinets in the mobile cabin

1. Cabinet assembly: Install 1 set of long equipment cabinet made of new environmentally friendly materials, with sliding window storage space set on the cabinet body.

2. Installation: 1 set of oxygen cylinder cabinet made of new environmentally friendly materials, which can accommodate 2 10L oxygen cylinders inside the cabinet.

3. Installation: 1 set of wall cabinets made of new environmentally friendly materials. The wall cabinet door adopts a sliding window structure, and the wall cabinet integrates storage and other functions.

4. Install one set of three-layer equipment racks in front of the storage cabinet on the left.

Viii. Interior of the mobile cabin

1. Interior of the mobile cabin: Made of flame-retardant composite materials, it is waterproof, mold-proof, antibacterial and easy to clean.

2. Mobile cabin floor: Made of an integral new type of lightweight material, the medical floor is acid and alkali resistant, anti-corrosion, wear-resistant, anti-static, easy to clean, with raised edges around the four sides to prevent dust accumulation and anti-slip, making it convenient to rinse with water.

Ix. Auxiliary Facilities

1. One set of seats: A two-person PVC material cabinet bed with a cabinet seat on the right side. The seat cushion and backrest surface are covered with leather and are advanced and independent.

2. One seat, two sets of item cabinets at the front of the mobile cabin, and a small stool in the middle.

3. Fire extinguisher: 1 fire extinguisher (1KG).

4. Waste bucket: 1 5L stainless steel waste bucket.

5. Safety handrail: 1 top safety handrail.
