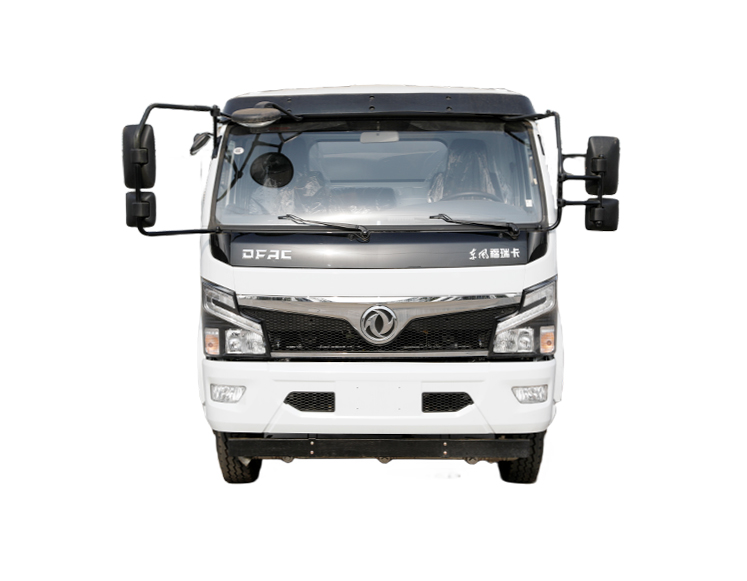

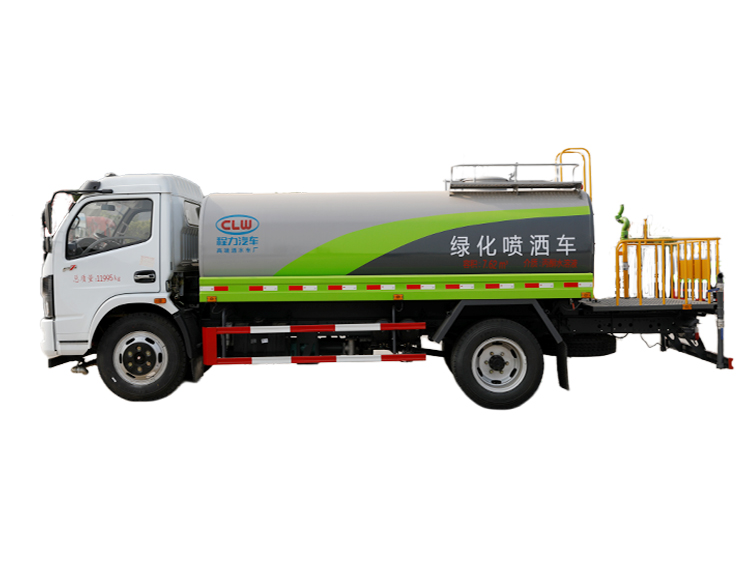

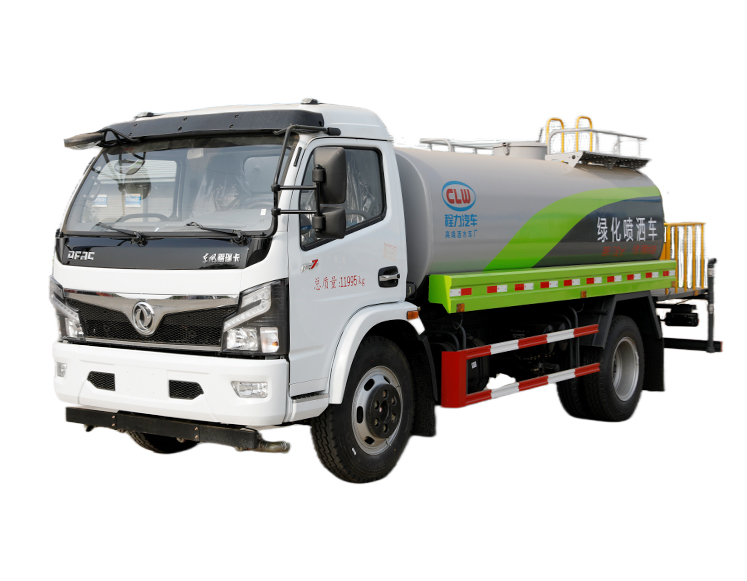

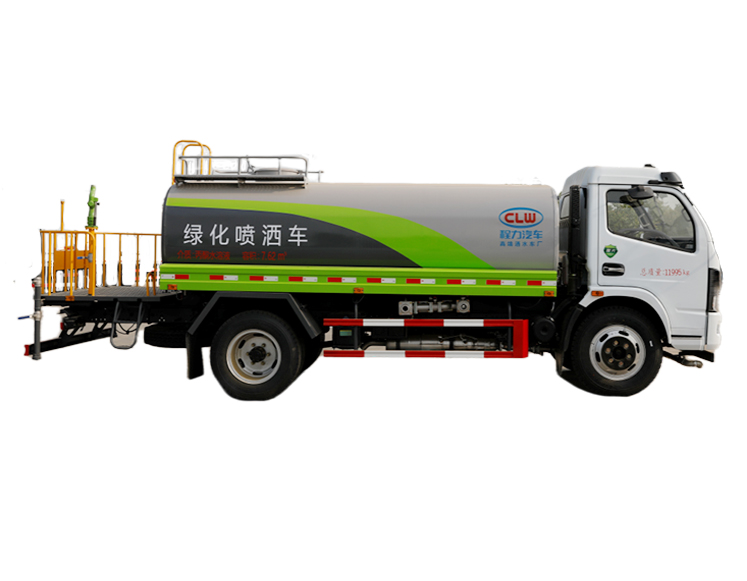

Vehicle Name: CL5120GPSD6 Type Greenery Spraying Vehicle.

2. Chassis model: EQ1125SJ8CDC.

3. Total mass: 11,995 kg.

4. Curb weight (Kg) : 4,900 kg.

5. Rated load capacity: 6965,6900kg.

6. Wheelbase: 3800mm.

7. The announced volume is 7.62 cubic meters, and the actual volume is 9.28 cubic meters.

8. Tank dimensions :4200×2000×1300mm.

The vehicle measures 7350×2350×2900mm in length, width and height.

10. Yuchai 165-horsepower engine, 5.5-ton rear axle, 245/70R19.5 vacuum tires, air brake, air conditioning, power Windows, central locking, ABS, 6-speed transmission.

11. Front flushing (spraying) and rear sprinkling, with side spraying, with a rear working platform, and a high-pressure water cannon for greenery sprinkling installed on the platform (the spray shape of the cannon can be adjusted: direct flushing, heavy rain, medium rain, drizzle, and can be continuously adjusted, with a maximum range of up to 30 meters), equipped with a high-power dedicated water pump, with a fire connector, a self-flow valve, self-priming function, and a filter screen. Suction lift ≥6 meters, water spraying width ≥16 meters, range ≥30 meters.

12. The tank body is made of Q235, with a partition thickness of 3mm, a tank body carbon steel thickness of 4mm, and a head thickness of 5mm. Large-diameter straight-through ball valve, aluminum alloy three-way, thickened main pipeline (76)

13. Cast aluminum pipe fittings: aluminum alloy elbow three-way, aluminum alloy flange three-way, aluminum alloy pump outlet four-way, aluminum alloy pump inlet straight-through. One-time die-casting in molds, no welds, avoiding water leakage. Standardized design, good interchangeability, convenient for maintenance and replacement parts. Aluminum alloy material is lighter, beautiful and practical, enhancing the product grade. Other accessories: aluminum alloy rear spray, stainless steel ball valve, new S-type high-pressure water cannon.

14. Perforated plate platform: Thickened perforated plate with better anti-slip performance, no water accumulation on the platform, optimized structure, and formed by stamping.

15. Air-cooled sprayer: 8KW air-cooled diesel generator set.

16. Fan power: 2.2KW.

17. Water pump power: 1.5KW.

18. Working pressure: 1.0-3.5MPA.

19. Spray flow rate: 20L/min.

20. Pitch Angle: -5 to 60 degrees (remote control).

21. Fog spectrum range: 50-150 μ m.

22. Horizontal range (still wind state) : 30M, 16 stainless steel nozzles, 360-degree rotation (manual or remote control).

23. Dimensions of the fan base (reference) : 1050*550*1700mm.

24. Generator dimensions (reference) : 800*600*650mm. The actual dimensions are subject to the physical item. (The fog cannon is an optional device
