I. Vehicle Configuration

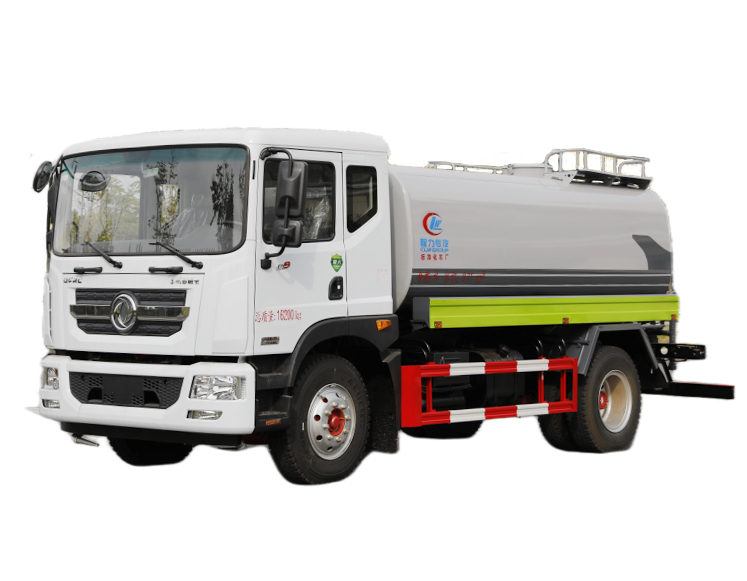

1. Product Name: Type of Greenery Spraying Vehicle

2. Chassis model: EQ1165LJ9CDE

3. Volume: The announced volume is 10.25 cubic meters, and the actual volume is 12.4 cubic meters

4. Tank dimensions: 4200×2280×1520mm

5. Total mass: 16,200 kg

6. Curb weight: 6730kg

7. Rated load capacity: 9340,9275kg

8. Vehicle length, width and height: 7760×2520×3250mm

9. Wheelbase: 3950mm

Ii. Chassis Configuration

Yuchai 165 horsepower, FAST small eight-speed transmission (4-cylinder engine), dashcam, power Windows, original air conditioning, central control (no remote key), ABS, power steering, air brake, 9.00R20 steel wire tires

2. Yuchai 200 horsepower, FAST small eight-speed transmission (4-cylinder engine), dashcam, power Windows, original air conditioning, central control (no remote key), ABS, power steering, air brake, 10.00R20 steel wire tires

3. Kangji 195 horsepower, FAST small eight-speed (8JS75), air brake, front and rear axles 3.9/8 denar, leaf springs 8/10+7, frame 860-250x80x7, air conditioning, dashcam, power steering, electric Windows

4. Kangji 230 horsepower, FAST 8JS75,53.9/8 Dana axle, 250 frame, original factory air conditioning, electric glass, ABS, air brake, exhaust brake, original factory power take-off.

Iii. Upper Structure Configuration

1. Special performance for water sprinkler trucks: front spray (spray) and rear sprinkling, with side spray, with rear working platform, high-pressure water cannon for greening sprinkling installed on the platform (adjustable spray shape: straight spray, heavy rain, medium rain, drizzle, continuously adjustable, maximum range up to 30 meters), equipped with high-power special water pump, with fire connector, with self-flow valve, with self-priming function, with filter screen. Suction lift ≥6 meters, water spraying width ≥16 meters, range ≥30 meters.

2. Material: The tank body is made of Q235, with a partition thickness of 3mm, a tank body carbon steel thickness of 4mm, and a head thickness of 5mm. Large-diameter straight-through ball valve, aluminum alloy three-way, thickened main pipeline (76).

3. Cast aluminum pipe fittings: Aluminum alloy elbow three-way, aluminum alloy flange three-way, aluminum alloy pump outlet four-way, aluminum alloy pump inlet straight-through. One-time die-casting in molds, no welds, avoiding water leakage. Standardized design, good interchangeability, convenient for maintenance and replacement parts. Aluminum alloy material is lighter, beautiful and practical, enhancing the product grade.

Other accessories: aluminum alloy rear spray, stainless steel ball valve, new S-type high-pressure water cannon.

4. Perforated plate platform: Thickened perforated plate with better anti-slip performance, no water accumulation on the platform, optimized structure, and formed by stamping.

Iv. Parameters of Air-assisted Sprayer

1. Air-cooled sprayer: 8KW air-cooled diesel generator set

2. Fan power: 2.2KW

3. Water pump power: 1.5KW

4. Working pressure: 1.0-3.5MPA

5. Spray flow rate: 20L/min

6. Pitch Angle: -5 to 60 degrees (remote control)

7. Fog spectrum range: 50-150 μ m

8. Horizontal range (still wind state) : 30M, 16 stainless steel nozzles, 360-degree rotation (manual or remote control)

9. Dimensions of the fan base (reference) : 1050*550*1700mm

10. Generator dimensions (reference) : 800*600*650mm. The actual dimensions are subject to the physical item (the fog cannon is an optional device).
