I. Vehicle Configuration

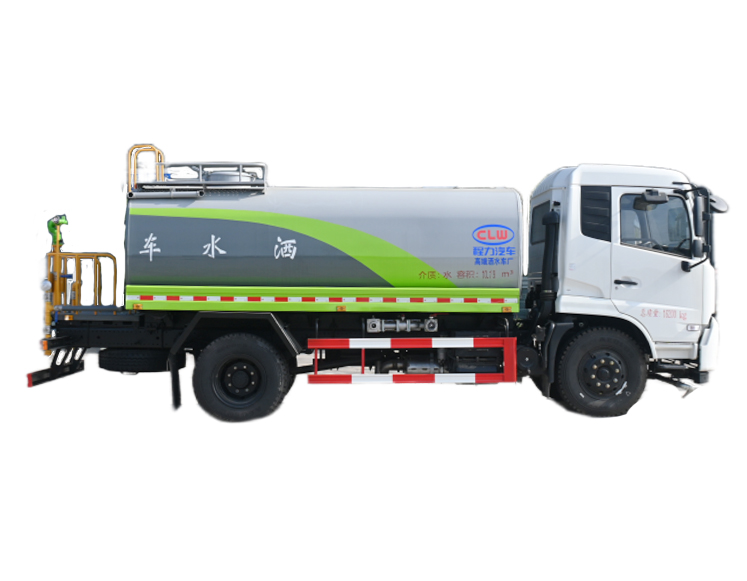

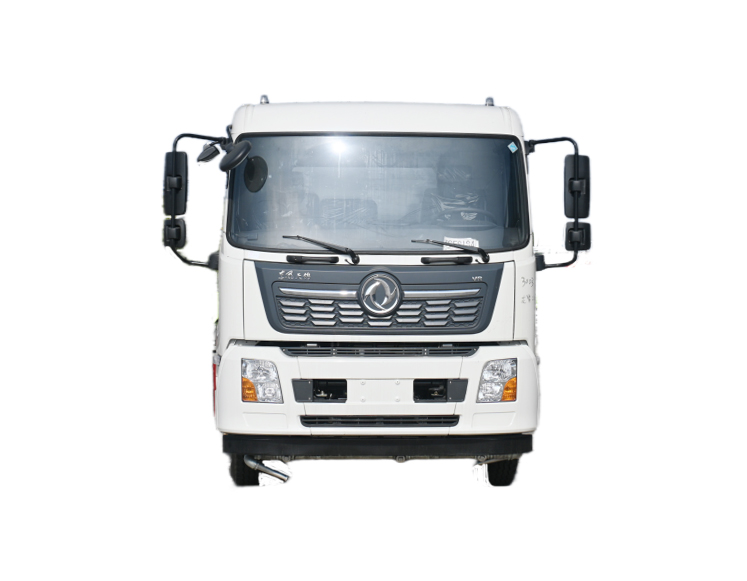

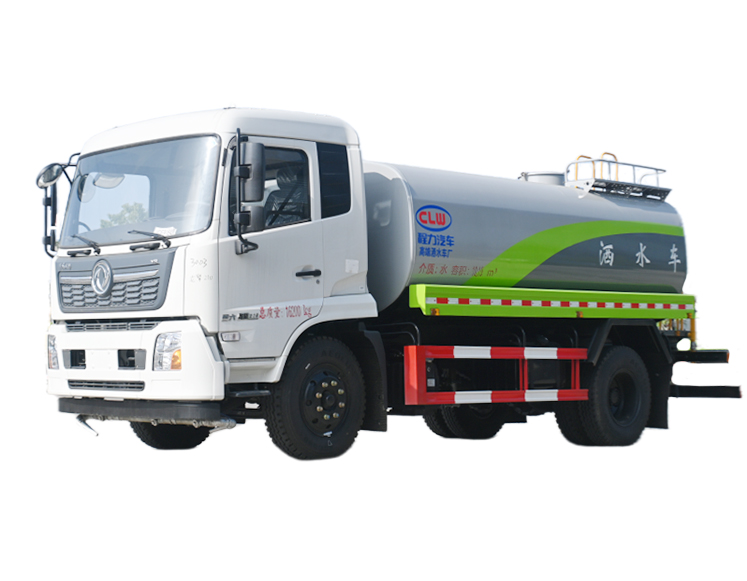

Product Name: CL5181GPSD6 Type Greenery Spraying Vehicle.
2. Chassis model: EQ1185LJ9CDE.
3. Volume: The announced volume is 11.67 cubic meters, and the actual volume is 14.36 cubic meters.
4. Tank dimensions: 4800×2300×1530mm.
5. Total mass: 18,000 kg.
6. Curb weight: 7,240 kg.
7. Rated load capacity: 10,565, 10,630 kg.
8. Vehicle length, width and height: 8510×2520×3250mm.
9. Wheelbase: 4500mm.
Ii. Chassis Configuration:
Yuchai 200 horsepower, FAST small eight-speed transmission (4-cylinder engine), dashcam, power Windows, original air conditioning, central control (no remote key), ABS, power steering, air brake, 10.00R20 steel wire tires.
2. Kangji 195 horsepower, FAST small eight-speed (8JS75), air brake, front and rear axles 3.9/8 denar, leaf springs 8/10+7, frame 860-250x80x7, air conditioning, dashcam, power steering, electric Windows.
3. Kangji 230 horsepower, FAST 8JS75,53.9/8 Dana axle, 250 frame, original factory air conditioning, electric glass, ABS, air brake, exhaust brake, original factory power take-off.
Iii. Upper Structure Configuration
1. Special performance for water sprinkler trucks: front spray (spray), rear spray, side spray, rear working platform, high-pressure water cannon for greening sprinkler installed on the platform (adjustable spray shape: straight spray, heavy rain, medium rain, drizzle, continuously adjustable, maximum range up to 30 meters), equipped with high-power dedicated water pump, fire connector, self-flow valve, self-priming function, and filter screen. Suction lift ≥6 meters, water spraying width ≥16 meters, range ≥30 meters.
2. Materials of the upper tank body and accessories: The tank body is made of Q235, with a partition thickness of 3mm, a tank body carbon steel thickness of 4mm, and a head thickness of 5mm. Large-diameter straight-through ball valve, aluminum alloy three-way, thickened main pipeline (76).
3. Cast aluminum pipe fittings: Aluminum alloy elbow three-way, aluminum alloy flange three-way, aluminum alloy pump outlet four-way, aluminum alloy pump inlet straight-through. One-time die-casting in molds, no welds, avoiding water leakage. Standardized design, good interchangeability, convenient for maintenance and replacement parts. Aluminum alloy material is lighter, beautiful and practical, enhancing the product grade. Other accessories: aluminum alloy rear spray, stainless steel ball valve, new S-type high-pressure water cannon.
4. Perforated plate platform: By installing perforated plates, the anti-slip performance is better, no water accumulates on the platform, the structure is optimized, and it is formed by stamping.
Iv. Parameters of Air-assisted Sprayer
1. Air-driven sprayer: QF-30 type, 8KW air-cooled diesel generator set.
2. Fan power: 2.2KW.
3. Water pump power: 1.5KW.
4. Working pressure: 1.0-3.5MPA.
5. Spray flow rate: 20L/min.
6. Pitch Angle: -5 to 60 degrees (remote control).
7. Fog spectrum range: 50-150 μ m.
8. Horizontal range (still wind state) : 30M, 16 stainless steel nozzles, 360-degree rotation (manual or remote control).
9. Dimensions of the fan base (reference) : 1050*550*1700mm.
10. Generator dimensions (reference) : 800*600*650mm. The actual dimensions are subject to the physical item. (The fog cannon is an optional configuration.
