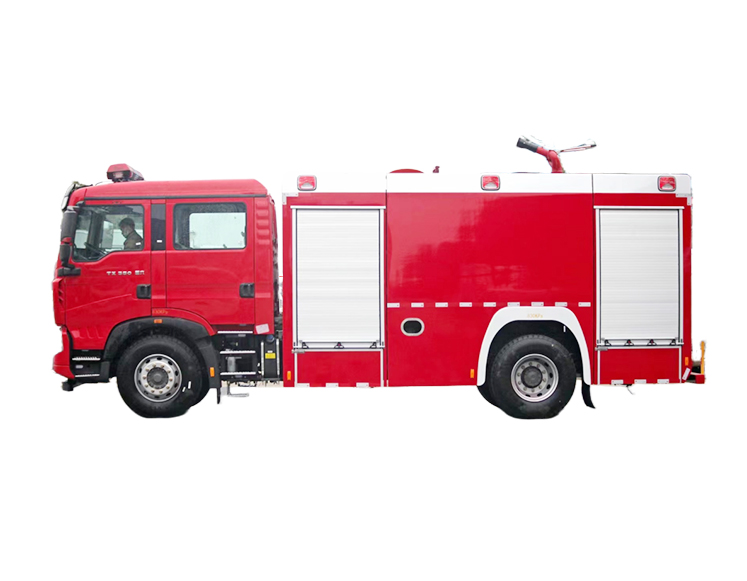

I. Chassis

Model: Jinan Truck Co., Ltd. of Sinotruk Group

2. Engine: Sinotruk Group Co., LTD

Model: MC07H.35-60

4. Power: 257kW

5. Drive type: Rear-wheel drive

6. Wheelbase: 4700mm

7. Emission standards: GB3847-2005, GB17691-2018 National VI

Ii. Cab

1. Structure: Flat-head, original double-row four-door passenger compartment

2. Seating arrangement: 2 people in the front row and 4 people in the back row. Guardrails and handrails are installed in front of the seats. Firefighters quickly put on their air breathing apparatus on their way to the fire fighting and rescue operation. After arriving at the fire scene, they promptly engaged in the fire fighting and rescue operation

3. Cab structure: Install a hydraulic tilting mechanism suitable for overturning

4. Cab equipment: In addition to the original vehicle equipment, install a power take-off control switch, a 100W alarm, a warning light switch, etc

5. Exterior of the cab: One long row of warning lights is installed at the front of the top of the cab

6. Capacity: 6000Kg

7. Foam filling: 2059Kg

8. Material: The water tank is made of high-quality steel plate and has undergone high-tech anti-corrosion treatment

9. Foam tank: High-quality 304 stainless steel

10. Structure: The frame is welded, and longitudinal and transverse anti-sway plates are set inside the tank to reduce the impact of water inside the tank on the tank during vehicle operation. The front and rear wall plates of the tank are folded with trapezoidal ribs, which ensures that the tank has sufficient strength and rigidity

11. A quick-opening manhole is provided on the top of the tank to facilitate the entry and exit of maintenance personnel. The tank is equipped with a device and a filter screen to prevent the water pump from drawing water and forming vortices, which could affect the flow rate

The tank is equipped with two 76mm overflow pipes and two 76mm injection ports on each side of the carriage, which is convenient for other vehicles to supply water and add liquid

13. Equipment: 2 inlets, equipped with quick locking and opening devices

14. Two liquid level indicators.

15. Two sewage outlets, with stainless steel ball valves

16. Two water injection ports (one on each side)

17. Process: The welding is firm and reliable, and defects such as slag inclusion and false welding are removed and cleaned. After welding, a 24-hour hydrostatic test should be conducted on the tank body to ensure no leakage.

Iii. Fire Pumps and Pipeline Systems

1. Fire pump: CB10/60 low-pressure fire pump

2. Flow rate: 60L/s

3. Pressure: 1.0MPa

4. Installation type: Rear

5. Vacuum pump: Piston type

6. Vacuum pump material: Wear-resistant and corrosion-resistant to meet sealing requirements

7. The water drawing time is ≤35 seconds, and the suction depth is ≥7 meters

8. Maximum vacuum degree: ≥85 kpa

9. Suction pipe: The water pump is equipped with a Φ150mm water inlet, which can draw water from natural water sources, liquid tanks, and fire water storage tanks. Additionally, a conversion reducer interface can be added to connect to fire hydrants for water suction and supply. The suction pipe is placed on the roof of the vehicle. One water inlet with a Φ150mm butterfly valve is provided for connection to the water tank.

10. A Φ100mm water outlet fire cannon pipeline and control valve are installed on the roof, and flexible joints are used.

On the left and right sides of the pump room, there are one Φ80mm and one Φ65mm manual ball valve controlled water outlets respectively.

12. Water injection pipeline: In the pump room, there is one Φ65mm water pump pipeline for injecting water into the tank and a control valve.

There are two Φ65mm water injection pipes on each side of the carriage, which can be used to fill water into the tank. The interfaces are internal snap-on interfaces and are equipped with stopper covers.

14. Drain water pipeline: To protect the water pump and each ball valve, a drain water pipeline was installed in the pipeline, and ball valves were respectively provided.

15. Cooling water pipeline: To enable the power take-off to handle various complex situations during operation, it is equipped with cooling water pipelines and control valves that are connected to the inlet and outlet water pipelines.

Iv. Fire Cannons

Model: PL60 Fire Cannon

Flow rate: 60 (1/s)

Range: Water ≥60mm, foam ≥60mm

Pressure: 1.0MPa

Location: At the top of the water tank.

Control: Manual control is adopted, equipped with a locking mechanism for convenient operation
