I. Product Brief Introduction

The multi-functional dust suppression vehicle is mainly used as a special vehicle for railways, roads and other places with high dust generation. The water is atomized by the vehicle-mounted dedicated fog cannon, which can effectively and quickly force the pollutants floating in the air down to the ground, purifying the air. Water can also be sprayed onto the road surface through sprinkler heads to moisten the dust, reduce the risk of dust being raised, and fix the dust on the ground, thereby achieving the effect of dust suppression.

2. Dust suppression vehicles are mainly applied in places where a large amount of dust is generated, such as construction sites, quarries, dump sites, coal mines, port terminals, etc., as well as urban roads, highways, expressways and other traffic roads that need to be kept clean. They play a significant role in reducing the concentration of dust in the air, improving the traffic environment and people's quality of life.

3. Our company's products are standardly equipped with a front spray (duckbill), rear wash, rear spray, side spray, and a rear-mounted working platform. The platform is equipped with a greenery water cannon (which can rotate 3600 degrees, and can be adjusted to a columnar shape, a mist shape, a direct spray shape, heavy rain, medium rain, light rain, and drizzle shapes), and is also equipped with a high-quality high-power dedicated water pump (which can self-priming and self-discharging). The water can be pumped from the river or pond to the tank. The debris filter screen, fire protection interface, self-flow ball valve system, power take-off, ball valve and filter screen are all national standard products. The main pipeline is thickened, the flange gasket and flange plate are thickened, and the large diameter ball valve. Overall, it features excellent performance, safety and reliability, high efficiency, large flow rate, and convenient maintenance.

Ii. Product Configuration

1. Chassis configuration: Sinotruk HOWo multi-functional dust suppression vehicle, original chassis of Sinotruk Jinan Commercial Vehicle Co., LTD., chassis model: ZZ1047H3315F145Z, 1.9-meter spacious single-row cab, Wanliyang 6-speed transmission, leather seats, air horn, 7.00R16 steel wire tires, air conditioning, central door lock, power steering, electric Windows, remote key, ABS, 24V battery, air brake.

2. Upper structure configuration

The tank is approximately 7 cubic meters in size and can be equipped with a 30-type fog cannon.

2. The standard front spray is for hedging. Users can adjust the hedging position according to their own needs.

3. Patterned anti-slip platform, with gun tubes selected according to different vehicle models.

4. The switch ball valves for the front spray, rear spray and side spray of the greening high-pressure cannon all adopt 50-diameter stainless steel ball valves.

5. The new type of bearing water cannon is more durable.

6. 50-50 type water pump.

7. Anti-corrosion flange gasket.

8. The aluminum rear spray is not easy to burst.

9. Double-sided welding both inside and out, no pores, and beautiful weld seams.

10. The side guard mesh and rear bumper are all produced in a standardized manner, which is convenient for disassembly and maintenance.

Iii. Main Technical Parameters of the Product

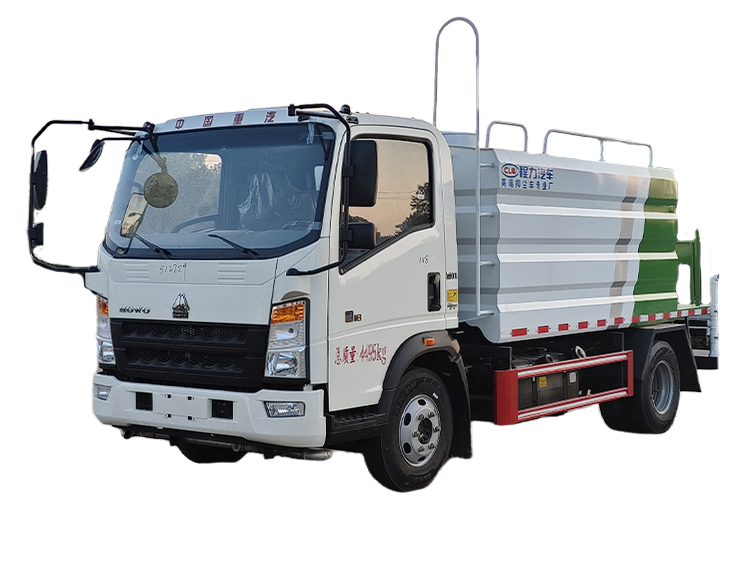

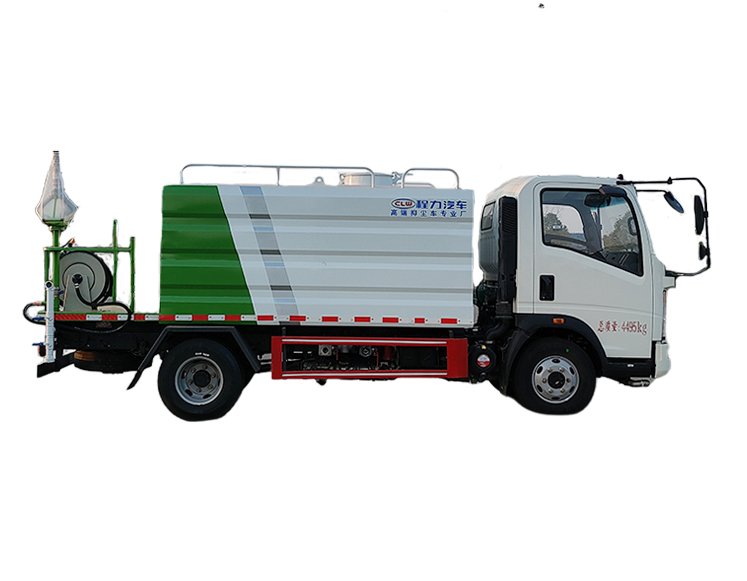

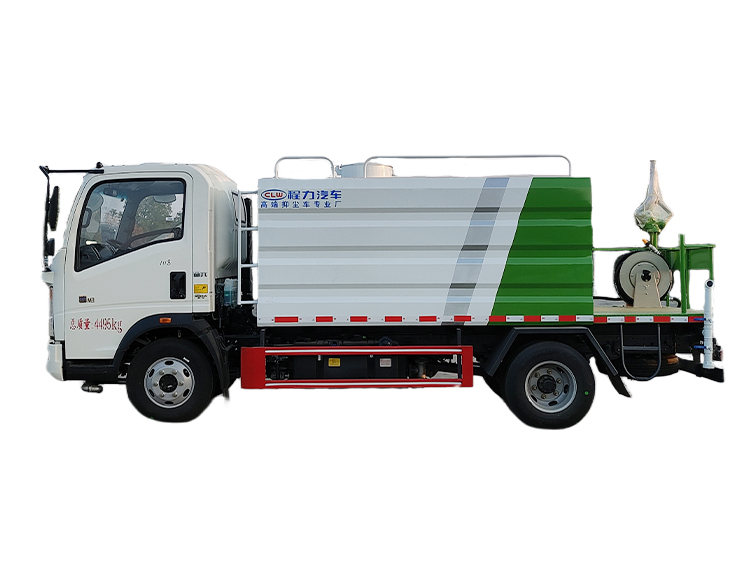

1. Vehicle model: CL5047TDY6YC multi-functional dust suppression vehicle

2. Engine model: WP2.3Q140E62

3. Engine: Weichai

4. Engine displacement: 2289

5. Transmission: Wanliyang

6. Tire specification: 7.00R16

7. Wheelbase (mm) : 3280

8. Total mass (Kg) : 4495

9. Curb weight (Kg) : 3860

10. Rated load capacity (Kg) : 505

11. Overall vehicle dimensions (mm) : 5995×2200×3000

12. Tank capacity: 7 cubic meters

13. Fuel type: Diesel

14. Emission standard: National VI

15. Pump model: Special high-power (50 pump)

16. Tank material: Q235 carbon steel
